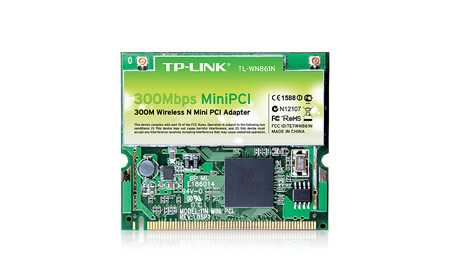

300Mbps Wireless Mini PCI Adapter (Discontinued Products)
TL-WN861N

Highlights:

  • Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and internet calls
  • MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability
  • Easily setup a highly secured wireless link with WPS™ (Wi-Fi Protected Setup)

Overview

What This Product Does

Complying with IEEE 802.11n, IEEE 02.11g and IEEE 802.11b standards, TP-LINK TL-WN861N is designed to provide a excellent wireless performance for internet sharing, downloading files or video streaming, etc. And the Easy Setup Assistant coming with the CD will guide you to complete the whole installation and security configuration step by step.

Wireless N - Speed & Range

Complying with the IEEE 802.11n standard, TL-WN861N can easily establish a wireless network and get up to 15X the speed and 5X the range of conventional 11g products. Compared with legacy 54M products, TL-WN861N delivers performance enhancements, allowing you to have a more joyful surfing experience, including sharing files, watching streaming media.

CCA Technology - Stable Wireless Signals

Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.

WPA / WPA2 Encryptions - Advanced Security

As for the security of WI-FI connection, WEP encryption has been no longer the strongest and safest guards for outside intrusions. TL-WN861N provides WPA/WPA2 encryptions that are created by the WI-FI Alliance industry group, preventing the wireless network from outside threats.

QSS Button - Quick Security Setup

Compatible with WI-FI Protected Setup™ (WPS), TL-WN861N features Quick Security Setup (QSS) function, which is ideal for creating a WPA encrypted connection to prevent outside intrusion, and meanwhile maximize the management resources. Not only is this faster than normal security setups but more convenient in that you don’t need to remember a password!

Easy Setup

The device comes with a CD with an Easy Setup Assistant that leads you through the setup process step-by-step, and even helps with wireless network settings and security configurations, which is convenient to the users, especially for novice users.

Features

  • Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and internet calls
  • 2T2R MIMO™ delivers greater throughput at range versus conventional 1T1R
  • Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X
  • Supports Windows 2000, Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit
  • Supports ad-hoc and infrastructure mode
  • Bundled utility provides quick & hassle free installation
  • Seamlessly compatible with 802.11n/b/g products

Specifications

HARDWARE FEATURES
Interface32-bit Mini PCI
Dimensions (W X D X H)2.4x 2.0 x 0.1 in. (59.7 x 51 x 3.3 mm)
WIRELESS FEATURES
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency2.400-2.4835GHz
Signal Rate11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP<20dBm
Reception Sensitivity270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless ModesAd-Hoc / Infrastructure mode
Wireless SecuritySupport 64/128/152 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation TechnologyDBPSK, DQPSK, OFDM, CCK, 16-QAM, 64-QAM
OTHERS
CertificationCE, FCC, RoHS
Package ContentsWireless Adapter
Resource CD
System RequirementsWindows Vista(32/64bits), Windows XP(32/64bits), Windows 2000
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
